Hydrive Commander Kit Sport – COMKIT-SPORT

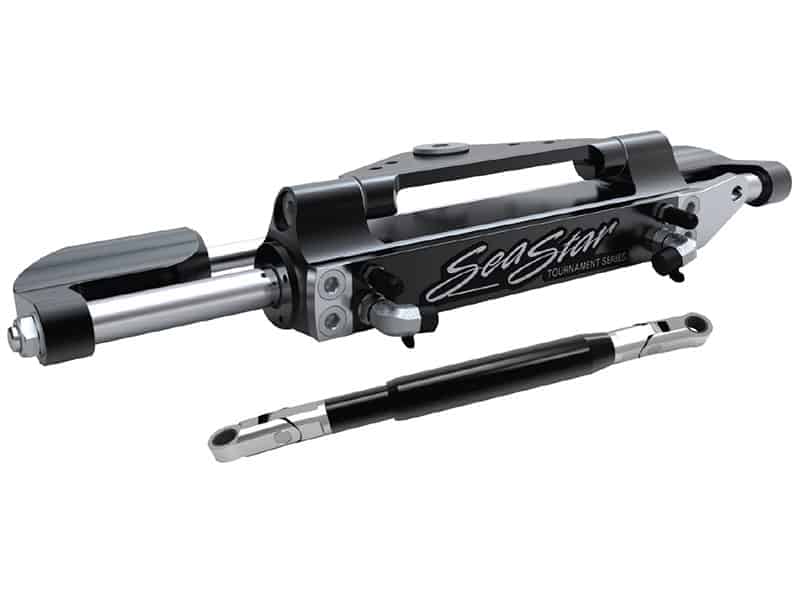

Description Hydrive Commander Kit Sport – COMKIT-SPORT The COMKIT-SPORT is suitable for leisure boats with single outboards up to 135HP or twin outboards up to 250HP TOTAL (counter-rotating). Featuring the Side-mount 512T cylinder, and the 500 helm, the new Commander COMKIT-SPORT is an easy-to-install solution for family leisure boats, offering the reliability of hydraulic steering at an economical price without the jammed cables. The cylinder is designed to screw directly onto the outboard motor’s tilt-tube or pivot-tube, in exactly the same way as a conventional cable-steering unit. Like other tube-mount cylinders, it requires very little clearance to the side of the outboard motor. Model: COMKIT-SPORT Ram Style: Push-Pull Length: 540mm For Outboards: up to 135HP (optimum 90HP) or Dual Outboards Counter-rotating up to 250HP total 500 Helm Specifications: Helm Capacity: 20cc/rev In-built lock valve Maximum Working Pressure: 800psi Absolute Working Pressure: 1000psi Weight: 5kg Lock to Lock turns: 3.75 512TN8 Side Mount Cylinder Specifications: Cylinder Capacity: 77cc Stroke: 203mm Weight: 2kg Kit Includes: 1 x 500 Helm 1 x 512TN8 Cylinder 2 x 1Lt ULTRA-15 Fluid 15 metres (50 foot) x 3/8″ OD Nylon Tubing 1 x Bleeding Kit Fittings Kit Installation Manual Admiral_commander-installation-manual Admiral-brochure-new-outboards-sterndrives DATA-SHEET-COMKIT-SPORT-1 Hydrive Outboard Selection Chart Issue-10
