Baystar Hydraulic Steering Complete Kit – Adjustable Outboard Hose with Fittings

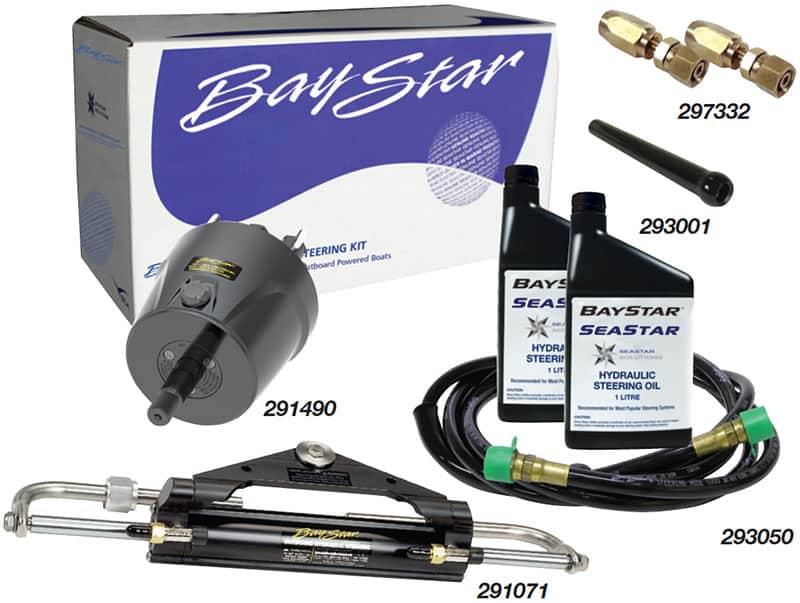

Description Baystar Hydrualic Outboard Hose Kit up to 150 HP HC4645-3 – Complete Kit with Outboard Hose Complete BayStar™ steering kit (291561) providing the flexibility to enable the installer the ability to make whatever hydraulic hose length required, without the need for specialist swaged fittings. The two unique re-usable brass end fittings allow the installer to simply cut the hose to length and insert the brass connectors. Complete kit includes 50 foot length of outboard hose, BayStar™ helm, BayStar™ front mount cylinder, hydraulic oil, rubber boot and two re-usable hose fittings. INTRODUCTION BayStar™˙hydraulic steering is brought to you by the manufacturers of SeaStar®, the most trusted name in pleasure boat steering. BayStar allows you to install all of the safety, reliability and comfort of hydraulic steering onto your boats rated up to MAX. 150HP as rated by the engine manufacturer. Combine this with the superior SeaStar Solutions design team, rigid ISO quality control and teamed with the finest materials and precision manufacturing—BayStar continues the tradition bringing comfort and safety to boating. The BayStar steering system consists of a super low friction helm for smooth comfortable steering, a balanced cylinder–featuring a compact design that fits most splashwells. This kit includes Quantity Item Description Reference Code 1 Cylinder front mount  HC4645-3 291071 1 Helm – Dometic BayStar 1.4  HH4314-3 291490 2 Dometic Seastar oil (946ml) 291902 1 50 feet outboard hose 293050 2 Re-usable hose fitting 297332 1 Rubber boot 293001 BayStar is NOT recommended in applications with high steering effort (i.e. such as those using high performance engines or boats capable of attaining high speeds), customers should consider upgrading the system to SeaStar/SeaStar Pro steering . This will reduce the steering effort due to the fact that SeaStar steering provides more output power resulting in lower steering effort. Please note there are other cylinders that we can look at changing into this kit – please call us to discuss 07 3039 3100. Please compatiability list below. Features • Patented No FeedBack™ Steering lock valves. • 5 turns lock-to-lock. • Up to 150 horsepower (total). • Available either as separate components or as a complete system ready to install. • Fixed cylinder. • BayStar hydraulic tubing cut to suit application. • Tilt option available. • Requires 3” (76mm) cut-out hole in dash. • Requires 21” (534mm) splashwell width. CAUTION DO NOT use BayStar on smaller HP outboard engines that use wing nut type transom mount clamping screws. Notice Tilt Helm HH4315 is available separately. Currently not available in kit form.   APPLICATION GUIDE (Cylinders HC4645H/47H/48H/58H) (Cylinders HC4645-3/47-3/48-3/58-3) APPLICATION GUIDE – Baystar Steering Cylinder (Cylinders HC4645H/47H/48H/58H) (Cylinders HC4645-3/47-3/48-3/58-3) SKU Make Year range Capacity Notes Cylinder MPN 291071 Force 1985 to date 90–150HP — HC4645-3 291071 Honda 1992 to date 30–90HP — HC4645-3 291073 Honda 1998 – 2010 115–130HP — HC4647-3 291071 Honda 2003 to date BF135HP — HC4645-3 291071 Honda 2010 to date 115–150HP — HC4645-3 291071 Honda 2015 to date 100HP — HC4645-3 291074 Johnson / Evinrude 1977 – 1990 65–150HP — HC4648-3 291071 Johnson / Evinrude 1991 to date 40–150HP — HC4645-3 291075 Johnson / Evinrude 1997 to date 115HP Ficht 4, 5 HC4658-3 291075 Johnson / Evinrude 1998 to date 40–140HP 4-Stroke — HC4658-3 291075 Johnson / Evinrude 1997 to date 115HP Ficht — HC4658-3 291071 Johnson / Evinrude 2017 to date 75–150HP Ficht 5 HC4645-3 291071 Mercury / Mariner 1984 to date 75–150HP — HC4645-3 291072 Mercury / Mariner 1998 – 2007 46-60HP 2-Stroke — HC4670-3 291071 Mercury / Mariner 2008 to date 40HP 4-Stroke — HC4645-3 291071 Mercury / Mariner 2008 to date 60HP 4-Stroke — HC4645-3 291071 Nissan 1990 to date 120–140HP — HC4645-3 291071 Suzuki 1986 to date 150HP — HC4645-3 291071 Suzuki 1996 only 115–140HP — HC4645-3 291071 Suzuki 1987 – 2002* 115–140HP 1 HC4645-3 291071 Suzuki 1990 – 2000 90–100HP — HC4645-3 291071 Suzuki 1998 to date 40–70 4-Stroke 1 HC4645-3 291075 Suzuki 2001 to date 115–140HP 4-Stroke 1, 4 HC4658-3 291071 Tohatsu 1990 to date 40–140HP — HC4645-3 291071 Tohatsu 2014 to date 60–150HP — HC4645-3 291071 Yamaha 1998 to date 40–50HP 2 HC4645-3 291071 Yamaha 1998 to date 60HP 3 HC4645-3 291071 Yamaha 1986 to date 70–90HP 1 HC4645-3 291071 Yamaha 1997 to date 80–150HP 4-Stroke — HC4645-3 291074 Yamaha 2000 to date 25–60HP 4-Stroke 1 HC4648-3 291074 Yamaha 2010 to date 70HP 4-Stroke — HC4648-3 291075 Yamaha 2011 – 2014 90–115HP (A Series) — HC4658-3 291075 Yamaha 1997 – 2013 115A 4-Stroke — HC4658-3 291071 Yanmar 2014 to date 115B 4-Stroke (B Series) — HC4645-3 291071 Yanmar 1990 to date 27–36HP — HC4645-3 Notes: Requires spacer kit 293690 (HO5090). Engine clamp brackets must be cut or ground, and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt. Steering hook Yamaha Part #63D-48511-00-4D required. Cylinder 291071 may be used in these applications. The pivot plate will need to be flipped before installation. Johnson 115HP 2-stroke engines require the pivot plate to be flipped. See Note 4. *Not suitable for 115-140HP. Suzuki motors manufactured in 1996 only. N.B. Dometic BayStar Plus is not recommended for Mercury 150HP Optimax DFI. BAYSTAR CYLINDERS Part# HC4645H, HC4645-3 Balanced cylinder, featuring a compact design that fits most splashwells. Part# HC4600 (No Longer Available. Replacement parts still available) Balanced cylinder that fits most splashwells. Additional Parts Available separately: BAYSTAR HELM Part# HH4314-3 Super low friction helm for smooth comfortable steering. BAYSTAR STEERING KITS Complete BayStar™ steering kit (291561) providing the flexibility to enable the installer the ability to make whatever hydraulic hose length required, without the need for specialist swaged fittings. The two unique re-usable brass end fittings allow the installer to simply cut the hose to length and insert the brass connectors. Complete kit includes 50 foot length of outboard hose, BayStar™ helm, BayStar™ front mount cylinder, hydraulic oil, rubber boot and two re-usable hose fittings. Code Description   291071 1 x Cylinder Capacities – SeaStar Solutions Part No. HC4645-3 Cylinder Model: Front Mount Bore: 1.25″ / 31.7mm Shaft Dia.: .625″ / 15.9mm Stroke: 8″ / 203mm Volume: 118.6cc / 7.2in3 Torque: N/A 291490 1 x Front Helm Pump – 1.4  HH4314-3 Front MountDisplacement: 22.9cc / 1.4cu in Relief Valve Setting: 70bar / 1000psi 291902 2 x Hydraulic Oil – 1L 293001 1 x Adjustable Outboard Hose Kit – Rubber Boot 293050 1 x 50 foot Seastar Standard Outboard Hose 297332 2 x Re-usable Hose Fitting.
