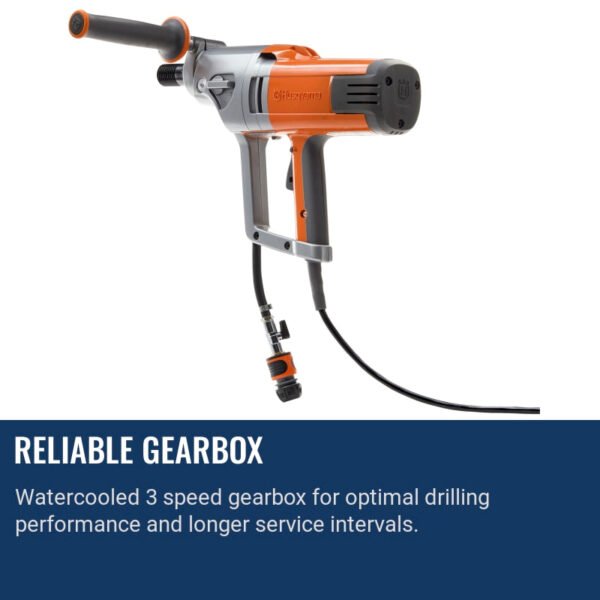

Husqvarna DM 230 | Handheld Core Drill

Husqvarna DM 230 Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DM 230 configuration pairs Corded power source, 2.5 hp rated input power, and 15.4 lbs weight. Key differentiators 100-120 V power/drive requirement captured for jobsite planning 6" drilling or boring capacity for selecting the right bit and setup 730 rpm speed range or gearbox detail supports bit-size control 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility Hand-Held mount/system configuration supports correct rig pairing Hand-held format supports fast setup for smaller penetrations and repair work Specifications Max Bit Diameter 6" Power Phase 1PH Power Source Corded Recommended Bit Diameter 1" – 6" Tool Mount Hand-Held Wet/Dry Use Wet WASHER QUICK RELEASE/COPPER D SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951 Rated input power 2.5 hp Frequency 60 Hz Voltage 100-120 V Phases 1 ph Drill bit diameter handheld, max 3 in Drill bit diameter with stand, max 6 in Recommended drill bit diameter, min 1 in Coolant Wet Number of gearbox speeds 3 Spindle speed unloaded gear 1 730 rpm Spindle speed unloaded gear 2 1,700 rpm Spindle speed unloaded gear 3 3,600 rpm Water connector G 1 / 4" Water pressure, max 116 psi Mounting collar 2.36 in Spindle thread, inner 5/8" 11 UNC Spindle thread, outer 1 1/4" 7 UNC Product size length 17.5 in Product size width 4.2 in Product size height 13.6 in Weight 15.4 lbs Packaging length (Calc) 25.984 in Packaging width (Calc) 20.472 in Packaging height (Calc) 5.906 in Article gross weight (Calc) 26.676 lbs Sound power level, guaranteed (LWA) 108 dB(A) Sound power level, measured 107 dB(A) Sound pressure level at operators ear 93 dB(A) Warranty 2 year limited WooCommerce SKU 968411301 Store Title Husqvarna DM 230 Included Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated Best-fit applications The DM 230 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Corded power source, 2.5 hp rated input power, and 15.4 lbs weight. Site utility or fuel: 100-120 V Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated Handling reference: 15.4 lbs Confirm delivery ZIP code and carrier-accessible receiving details before checkout
