Multiflex Hydraulic Outboard Steering System Kit up to 115HP

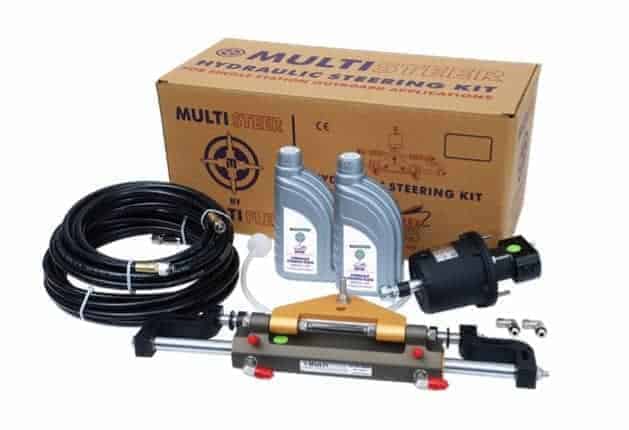

Description Multiflex Hydraulic Outboard Steering System Engine up to 115 Hp POHS-115AF Front Mount MultiSteer Hydraulic Outboard Steering system is used for outboard motors that operate at high speed. The system is designed for high performance – high torque applications & is recommended for flat bottom boats, bass boats and tournament fishing boats. MultiSteer offers complete system that includes Steering Cylinder, Helm Pump, one bottle of Steering Fluid, Oil Filling Kit & a pair of Hydraulic Hoses. Applications Packaged Hydraulic Steering System for Engines up to 115 Hp for single engine & max. 230 Hp for twin engines Hydraulic Helm Pump Front Mount Hydraulic Helm Pump: LM-HP-16 Hydraulic Cylinder Front Mount Aluminium Hydraulic Cylinder : LM-OC-115AF Hydraulic Oil 2 X Hydraulic Oil 1 Litre : LM-HO-150 Hose Kit and End Fittings 2 Hoses of 5 meters each : LM-CT-5.0 with pre-assembled fittings Steering Wheel Revolution 5.3 turns lock to lock Outboard Steering System Cylinder Technical Specification : LM-OC-115AF Balanced Cylinder : The number of turns (lock to lock) are equal from port to starboard SS 316L hard chrome plated Piston Rod SS 316L Support Rod Anodized Aluminum Tube, Tiller Plate & Support Brackets SS 316L Fasteners – Lock Nuts/ Washers etc Includes a pair of 90° adjustable chrome plated Brass Elbow Fittings to connect to 5/6” Hose tube Installation for Single and Twin engines Includes Hex Stud to connect cylinder to the engine. Helm Technical Specification : LM-HP-16 Ball bearing piston race Built-in Lock Valve to safeguard feedback from the motor Integral Relief Valve to protect the steering system from excess pressure 3/4” standard tapered Aluminium Alloy Shaft Easily accessible Lock Valve Seals & Shaft Seal for replacement All Helms include a pair of 90° adjustable chrome plated brass elbow fittings to connect to 5/16” Hose tube Both the ports are tightly locked with red dummy plugs for hose connection to the Cylinder The dummy port is locked with Hex Stud which can be used to connect to the dual station kit Mounting Hardware & Template are provided with helms Helm mounting is designed to easily get interchangeable with other brands Multiflex Hydraulic Outboard Steering System Cylinder Overall Length 538mm Cylinder Overall depth 121mm Helm Overall Length 187mm Helm Width (in dash) 80mm Helm mounting holes 70.7mm apart
